Persistence capabilities are usually granted to applications by the use of explicit access to database management systems (DBMS), such as object-oriented databases or object-relational mapping products. Tangling application functional code with explicit SQL or OQL persistence statements makes up the final application.
A different approach is the support for persistent objects into object-oriented languages. Taking Java as an example, PJava (Persistent Java) provides a persistent programming environment for the Java programming language, based in an orthogonal persistent variant of the Java platform and machine. Other initiatives use persistent storage engines (like ObjectStore PSE or Jeevan Java Objects) offering an API to endow the programming language with persistence functionality.
Whichever the previous alternative we select, application development will suffer from the following drawbacks:
Legibility and maintainability. Since additional code not related to the application logic is tangled through the source code to have the added database functionality, legibility and maintainability of the source code suffers a fall.
Portability suffers as well. There is a direct dependence of the persistence mechanism explicitly in the application implementation.
Poor adaptability. Adaptation of persistence related aspects, such as adding a new indexing technique, are commonly made by changing and recompiling the source code. There is no possibility to adapt these features to runtime emerging requirements, unpredicted at design time.
Persistence functionality reuse. Commonly, similar fragments of code achieving the same functionality differing from data structure, implies redundant code not being refactored and reused. With the separation of persistence concerns and the use of reflection, this routines could be generic and, therefore, reusable.
Complexity. While the programmer is developing the application functionality, she has to make explicit calls to the introduced APIs and/or the extensions added to the programming language, not being possible to reason about application logic in isolation.
Aspect oriented software development is an innovative paradigm focused on obtaining Separations of Concerns (SoC) in software development, making possible to modularize crosscutting aspects of a system. Most existing aspect-oriented tools are language dependent and lack runtime adaptability –few offer runtime adaptation in a very limited way.
Following the SoC principle, we have developed a different approach to the task of adding persistence functionality to programming languages, which is based on the notion of employing language-neutral reflection. This means that the user does not need to take special action to make objects persist (no explicit tangled code is needed) and so, complexity, legibility and portability problems are not a concern.
We have implemented a reflective platform called nitrO that, independently of the programming language selected by the programmer, offers a great level of runtime adaptability. Over this platform, we have developed a persistence framework that allows dynamic changes to persistence related aspects (for example, dynamic change of indexing techniques for a given application), not needing to specify it in the application’s code. This application adaptation is performed at runtime, not needing to modify its functional code, and can be carried out in a programmatically way –i.e., the application itself, or another one, may change its persistence features at runtime.
In many cases, significant concerns in software applications are not easily expressed in a modular way. Examples of such concerns are transactions, security, logging or persistence. The code that addresses these concerns is often spread out over many parts of the application. Software engineers have used the principle of SoC to manage the complexity of software development; it separates main application algorithms from special purpose concerns. Final programs are built by means of its main functional code plus their specific problem-domain concerns. Its main benefits are a higher level of abstraction, easier to understand the application’s functionality, concern’s code reuse, and the increase of application development productivity.
This principle has been performed following several approaches such as Composition Filters, Multi-Dimensional Separation of Concerns) or, the most extended and advanced one, Aspect Oriented Software Development (AOSD).
Aspect-Oriented Software Development (AOSD) is a promising discipline that follows the SoC principle at any stage of the software lifecycle. AOSD is an evolution of the Aspect Oriented Programming (AOP).
AOP is an implementation technique that provides explicit language support for modularizing application concerns that crosscut the application functional code. Aspects express functionality that cuts across the system in a modular way, thereby allowing the developer to design a system out of orthogonal concerns and providing a single focus point for modifications. By separating the application functional code from its crosscutting aspects, the application source code would not be tangled, being easy to debug, maintain and modify.
Most current AOP implementations are largely based on static weaving: compile-time modification of application source code, inserting calls to specific aspect routines. The places where these calls are inserted are called join points. The aspect weaver is the program that integrates aspects into the main application code. AspectJ is an example of a static-weaving aspect-oriented tool: a general-purpose aspect-oriented extension to Java that supports aspect-oriented programming.
It is commonly accepted to have preprocessor-like aspects weavers to interconnect functional code and aspect code. However, sometimes it is desirable to postpone the decision about whether aspect information is to be added to an application or not until runtime. For instance, one may have a huge resource-consuming image processing algorithm as part of an application and, depending on system load and available computing nodes, a trade-off between data distribution, the memory allocation scheme, and the utilization of computing power at runtime, has to be made. Both memory allocation and calculation distribution are crosscutting concerns, but the selection must be performed at runtime by the application in a programmatically way.
Our previous example identifies a weakness of traditional approaches to aspect oriented programming. Typically, one has to decide at compile time whether an aspect should be interwoven or not. Besides, at runtime, one can neither unweave the aspect nor interweave another aspect with the application.
In order to overcome the static-weaving weaknesses, different dynamic-weaving approaches have emerged: AOP/ST, PROSE, Dynamic Aspect-Oriented Platform (DAOP), Java Aspects Components JAC, CLAW or LOOM.NET are different examples. These systems give the programmer the ability to dynamically modify the aspect code assigned to application join points. However, they offer a limited set of language join-points, restricting the amount of application features an aspect can adapt. For instance, PROSE cannot implement a post-condition-like aspect, since its join-point interface does not allow accessing the value returned by a method upon exit. They have been used to develop different AOP programs, but the limited set of join-points they offer do not make them suitable for real-world persistence scenarios.
Both static and dynamic weaving AOP tools do not offer the implementation of crosscutting concerns, regardless of the language the programmer might use. They employ fixed-language techniques to achieve separation of concerns.
We have identified computational reflection as the best technique to overcome the two previously mentioned limitations. In this paper, we present a reflective approach to develop a language-neutral dynamic-weaving persistence system.
In the AOSD literature, persistence is often described as a classical candidate for aspectization. Theoretically, it should be possible to:
Analyzing different implementations of persistence aspects, we realize that the previous goals are not easily achieved in real world examples. As a first example, PersAJ provides a prototype to store aspects in an object-oriented database. In order to keep the persistence model independent of a particular AOP approach, an aspect is used to describe the persistence representation of aspects. Its aim is to provide a model for aspect persistence, but application data and persistence code is not separated. On the other hand, Kielze and Guerraoui provided an assessment of AOP based on separating concurrency control and failure handling code in a distributed system. However, they investigated a case study on aspectizing transactions, only one facet of persistence –modularization of code dealing with storage and retrieval of application data was not dealt with in detail. Another study has been performed trying to develop a persistence system with AspectJ. Their conclusion was that the development of persistence aspects and applications could not be done independently one of each other. Storage and update of persistent data does not need to be accounted for, but retrieval and deletion must be explicitly considered.
Therefore, the existing aspect tools do not seem to be really suitable for developing persistence aspects, following the main aim of the Separation of Concerns principle. Apart from that, really flexible aspect tools that offer dynamic weaving are not available and all of them are language dependent. We will show how reflection is a more suitable technique for these purposes.
Apart from being able to
dynamically make objects persist and give them back to its non-persistent
state, it is interesting to adapt their
persistent features in a programmatically way. Based on conditions
arisen at runtime, an application could customize features such as
the indexing mechanism or update policy employed.
Object-oriented persistence systems have special features to take into account: the existence of inheritance and aggregation hierarchies and the potential presence of method invocations. Thus, different indexing mechanisms are needed to allow an efficient processing of persistent data under these circumstances.
Many indexing techniques for object-oriented models have been proposed, which can be classified into structural and behavioral. Depending on the most frequent type of query on a given class (or class hierarchy), some indexing techniques are more efficient than others. Therefore, the persistence system will allow the use of different indexing mechanisms as well as the dynamic selection of a specific one deemed as the most appropriate depending on the type of the class (or class hierarchy) in question.
Another important persistence variable is the update frequency. It is a common trade-off between safety and performance: the higher the update frequency, the lower the loss of data plus the worse performance –and vice versa. So, depending on situations detected at runtime, our persistence system could chose between system safety and performance.
As we will show afterwards, our system offers dynamic selection of the storage, indexing mechanism and update policy programmatically.
The main technique we have used to achieve system goals is reflection. Reflection is the capability of a computational system to reason about and act upon itself, adjusting itself to changing conditions. Its computational domain is enhanced by its own representation, offering its semantics and structure as computable data.
exists many different classifications, we will just
focus on runtime computational reflection: customization
of system structure and semantics. An example is the dynamic modification
of the message-passing semantics, in order to update objects in a database
every time their state is modified.
Meta-Object Protocols (MOPs) is the most famous mechanism employed to obtain runtime computational reflection. However, they basically have two drawbacks: all of them use a fixed programming language, and they offer a too limited set of primitives to develop highly adaptable systems. That was the reason why we developed nitrO, a non-restrictive computational-reflective system. It offers much more adaptability than existing MOPs and is language neutral –i.e. it can be programmed in any programming language.

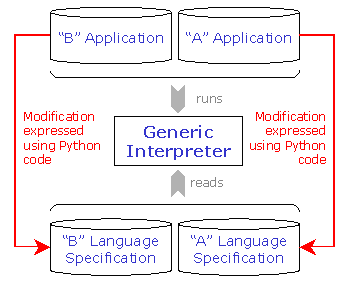

The theoretical definition of reflection, considers that a reflective computation is a computation about the computation, i.e. a computation that accesses the interpreter (what is called reification). We have designed nitrO following this concept: if an application would be able to access its interpreter at runtime, it could modify its structure and customize its language semantics. In this way, we have developed a generic interpreter (Figure 1) capable of interpreting any programming language by previously reading its specification. This generic interpreter is language-independent: its inputs are both the user application and the language specification.
any application may access language specifications by using the whole
expressiveness of a meta-language: the Python programming
language. There are no previously specified restrictions imposed by
a meta-object protocol –any feature can be adapted. Runtime changes
to language specifications are automatically reflected on the application
execution because the generic interpreter relies on the language specification
while the application is running. This feature is offered by the
statement that the generic interpreter automatically recognizes.
This mechanism is language neutral. Any application, whatever its language would be, may access and adapt another program in a language independent way. The meta-language employed is always Python.
Programming languages are detailed in nitrO
with language specification files. Their lexical (
and syntactic (
features are expressed by means of context-free grammar rules; their
semantics, by means of Python code, placed at the end of each rule
We have specified Python and Java and some domain-specific languages. Currently we are specifying ECMAScript. Correctness verification (e.g., type checking) is expressed inside the semantic actions using Python code. The next specification is a first example of a VerySimple language definition without any semantic correctness verification:

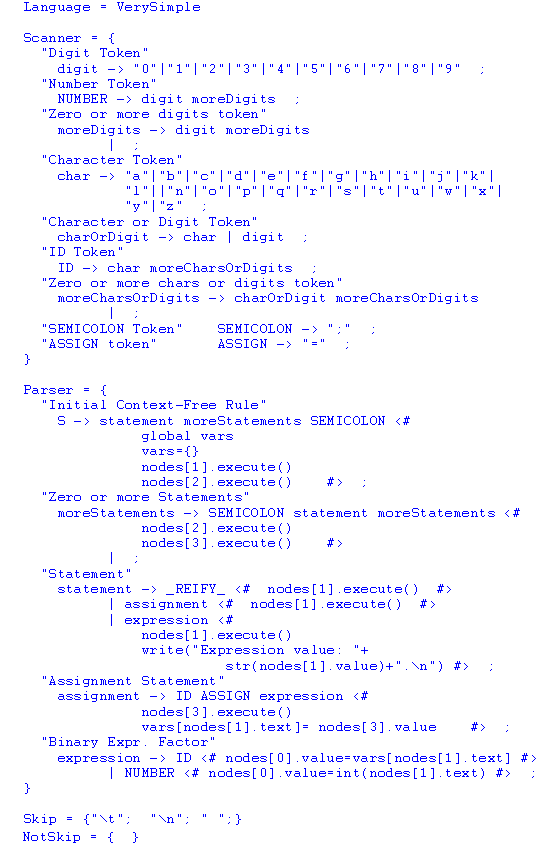

Every application must identify its programming language previously to its source code. When the application is about to be executed, its respective language specification file is analyzed and translated into an object representation in memory. Then, the generic interpreter, following the language specification, will execute the application.
_REIFY_ reserved word indicates where a
reify statement might be
NotSkip sections tell the interpreter
which tokens have to be automatically ignored and which ones should
be appended to the scanner buffer.
Any application code starts with its unique ID followed by its language name. The next code is an example of a very simple application:
The previous code is executed as it was specified in the VerySimple language:
two assignments are performed and the respective values of
are written. The generic interpreter runs this code by executing its language
semantics. However, using the
reify statement, python
code could be run at the interpreter level, accessing and modifying the application
Independently of the language used, the generic
interpreter automatically recognizes a
reify instruction Python code can be written. It
will not be processed as the rest of the application code: it will be taken
and evaluated at the same level as the interpreter process. This code, using
Python structural reflection, may access and modify any application’s
symbol-table and language specification, achieving the theoretical definition
of reflection: a computation that accesses its interpreter.
The way Python code access any application running in the nitrO system (independently
of its language) is by the
nitrO global object. This is the system’s
Facade. Its attribute
apps is a hash table of existing applications

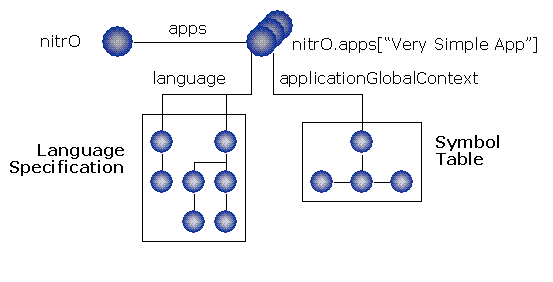

in the system. Each application object has two main attributes (Figure 2):
language: Its language specification. Accessing this attribute, language semantics might be dynamically modified.
applicationGlobalContext: Its dynamic symbol table, which permits the programmer knowing and modifying any application’s structure at runtime.
reify sentence may dynamically
access and modify the running application, no matter which program
or language might be used to execute them. It can
be executed by the previous very simple application or by another one to

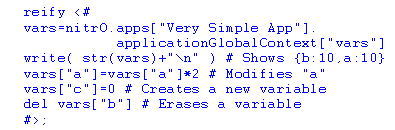

The code above takes the variables from the symbol table (accessing the
attribute), shows their values, modifies the value
of one, creates a new
variable, and erases an existing one. Note that this code is executed at

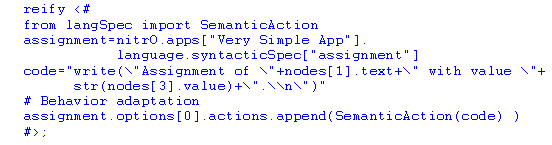

As a second example, we may enhance the assignment-statement semantics by showing a trace message every time an assignment takes place. This is the reification code that accesses the application’s language attribute:
First, the assignment-statement syntactic rule is taken. Then,
the code representing the new trace semantics is created, setting it
code variable. Finally,
the assignment semantics is enhanced in order to display a trace message.
Once this code is evaluated, the very simple application will
show a trace message
whenever an assignment is made (i.e., reflection has taken place).
As a result, nitrO is a computation platform that uses a non-restrictive reflective technique; it can be programmed using any language; is completely adaptable at runtime, and has a great level of application interoperability.

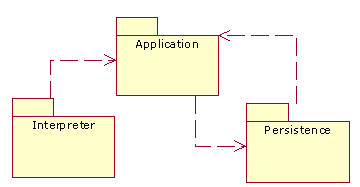

Once we have introduced a resume of the nitrO reflective platform, we are going to present the persistence system developed. Three main subsystems (shown in Figure 3) were employed on its design:
The nitrO system takes the specification of the Java Programming Language and automatically generates the parse tree of the application to be executed. Then, nitrO executes (following the Command design pattern) the semantic rule specified at the end of the first syntactic production. This process returns the program’s Abstract Syntax Tree (AST), a simplification of its parse tree.
The simple interpreter takes the program’s

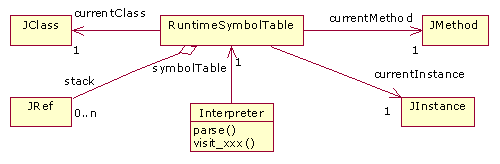

AST and performs its interpretation. A reduced class diagram of the
interpreter’s design is shown in Figure
4. The interpretation mechanism is based on performing different decorations
of the AST, following the Visitor pattern. The
takes an AST, analyzes the node structure and calls the appropriate
visit_xxx method –there
are as many
visit methods as syntactic constructions in the Java language.
Following this scheme, semantic analysis, application representation
(code generation into memory) and execution is performed.
At execution time, the interpreter context should be managed. It is composed of references to current class, instance, method and a stack of local references.

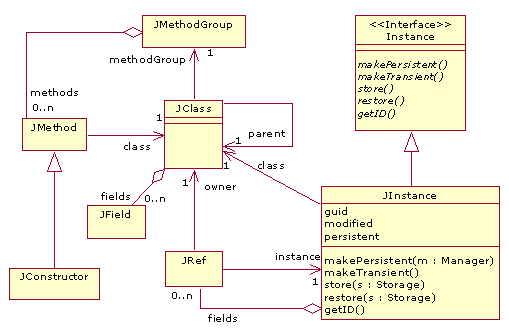

Figure 5 shows the straightforward class diagram of the
elements that represent a Java application at runtime. Classes (
are made up of fields (
JMethod) and constructors (
JConstructor); the two last elements
are grouped by
JRef denotes a reference to
thing of this module is that it has been designed indicating the
interface that should be implemented to make an element persist,
whatever its language would be. Implementing the
Instance interface, any object
could be persistent. In our design, only objects are persistent because
classes (code) are stored in the file system. However, if we prefer a complete
persistence system, we should implement these five operations in every
class in Figure
A common persistence issue is the persistence ID of every element to be stored. As application’s objects are going to survive to program execution, a reference to them (its memory address) will not be valid. Therefore, any object must have a unique global ID.
The persistence ID of an element should be returned at its
method invocation. The
JInstance implementation returns the concatenation
of the following values:
the IP address, the PID of the process, the UID of the user, the TID
of the active thread and milliseconds went by from January the 1st,
We have selected a complex reference implementation trying to avoid any possible collision, taking into account that different storages and applications can be used and the system could be extended to support distribution in the future.

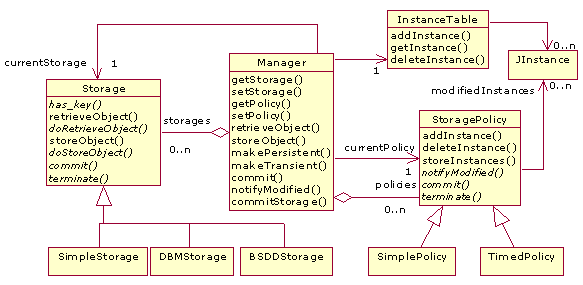

Figure 6 shows the persistence subsystem. The
Manager class is the Facade of the module and it has
been implemented with a Singleton instance.
The behavior of the persistence system will be established by the selection
Different update policies and storage systems can be employed in the system.
StoragePolicy abstract classes are partial
implementations offered by the framework to facilitate the addition
of new elements. Storages
are different ways to keep information persistently and its indexing
mechanisms; policies are the way objects should be updated into the
Runtime selection and swap of this two variables could be performed
in a programmatically
We have implemented three reference storages:
SimpleStorage: It is a simple dictionary that is saved and load from a file. It is the default storage selected by the manager.
BSDDBStorage: Provides access to Berkeley DB Library. The user can create extended linear hash, B+tree or variable-length record storages, depending on parameters passed to the
BSDDBStorageconstructor. This storage might be used to dynamically change indexing mechanism depending of runtime emerging requirements or even program’s structure.
DBMStorage: This storage offers a Unix
Dbmobjects behave like mappings, except that keys and values must be always strings.
Wehave also implemented two reference update policies:
SimplePolicy: The update of the storage selected will be performed (called its
commitmethod) whenever a persistent object has been modified a specified number of times. This is the default policy, with only one modification needed to update each instance.
TimedPolicy: A timer is employed to do the updating. The policy is parameterized with a number of seconds. When the timer reaches the number of selected seconds, a
commitis performed: every persistent object that has been modified is updated on the storage.
Obviously, each of the parameters of the previous policies can be modified at runtime depending on runtime requirements –as well as exchanging the whole policy.
In the storages implemented, we have used the
pickle Python module to serialize objects, i.e. converting any object to
a stream of bytes and back. Although this module marshals any Python object, it does not handle the
issue of naming persistence objects. So, we have defined our
own system of unique persistent-object IDs (section 5). The process of converting an object’s
reference to its corresponding persistent ID is called pointer swizzling; the
converse operation is termed unswizzling.
Manager does the process
of swizzling on the fly, meaning that the reference translation
is performed when the object
is about to be stored. Its fields, that are also persistent, are translated following the same scheme.
The reverse mechanism (unswizzling) is performed in two steps. The objects demanded (using its persistence ID) are searched in the storage at first. In this step, the streams of bytes are retrieved and converted into Python objects. Afterwards, the reference unswizzling is performed, recovering memory links between objects.
This process is achieved by means
InstanceTable instance (Figure 6). This table is a Python’s
weak dictionary that establishes a mapping between persistence ids
and their respective memory references. Any time an object is set as persistent, an entry is assigned in this table. Therefore,
acting as a cache, if a persistent object is needed and it has an entry in this table,
its associated instance will be used.
Notice that this table uses
weak references: if the persistent object is no more referenced,
the garbage collector might discard
it. If a persistent object is reclaimed and it has not an entry on the
Manager will recover it from the storage registered.
In order to make possible the implementation
of the update policy, the interpreter will have to notify the persistence
manager of instances modification. This is performed by the

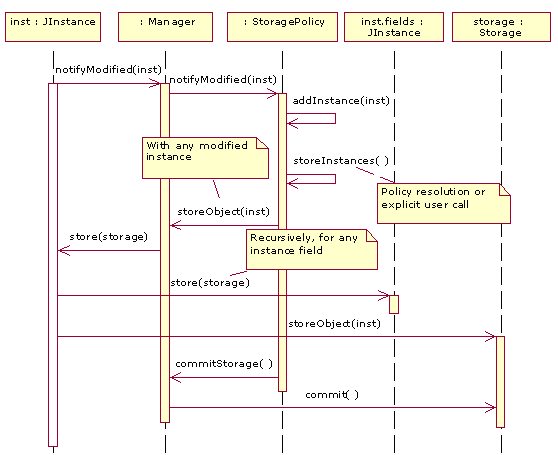

as shown by the sequence diagram in Figure 7. This way, the update policy will collect every modified
instance in order to do the future storage as appropriate.
Once the registered policy resolves to do the update (the user may also
do it explicitly) its
storeInstances method is executed.
This call causes the invocation of the
storeObject method of the manager as many times
as modified instances have been collected. Then, each instance
must prepare to serialization doing the swizzling as mentioned in the previous point –this
produces recursive calls to each instance’s field. Finally,
once the modified instances have been swizzled in the
the commit operation will synchronize the table with the storage, making the modified
instances persist by committing the corresponding update transaction.

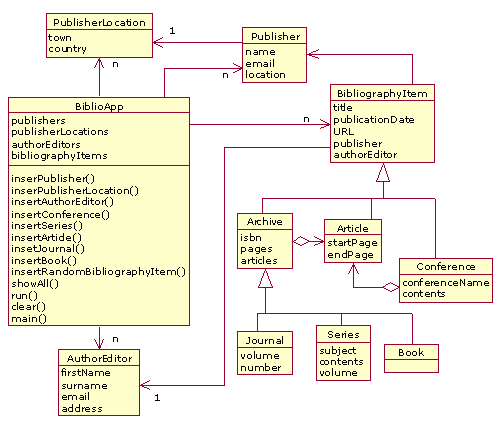

Within this section we will present a sample bibliography application derived from information stored on the DBLP server. The data model, represented as a UML class diagram, is shown in Figure 8.
The whole application has been developed in Java and it is no persistent at all. Its main
BiblioApp, which randomly creates different bibliography elements, modifies all of them (by means of the
run method) and, finally, restores its initial state (with the

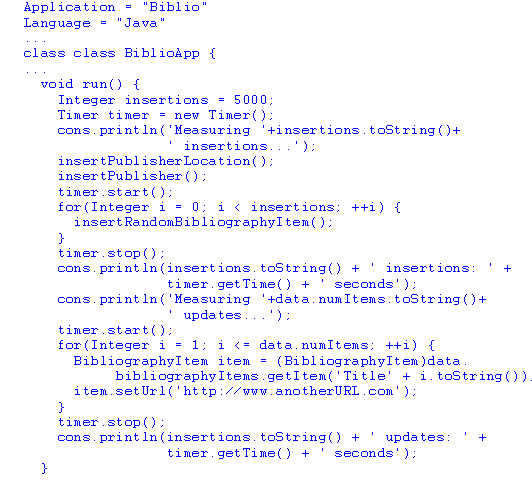

clear method). The following code
run method of the
BiblioApp class. It measures the time
employed to insert and modify an established number of bibliography items. The
represents the console of the application’s graphic window.
This application is executed in the nitrO system with the Biblio ID. Its execution shows the time employed to insert and modify 5,000 instances stored in RAM. Once this application has been started, we may develop another program that, using the reflective persistence system, will set and dynamically modify persistent features of the Biblio application. Moreover, this new application will be capable of calling methods of the Biblio program, although they have been written in different programming languages.
The new program (called Benchmark) is going to execute nested loops in which different storages,
update policies and indexing mechanisms will be assigned
to the Biblio application. During each loop iteration, the benchmark
clear methods of the bibliography application
causing insertion, modification and deletion of persistent objects with different

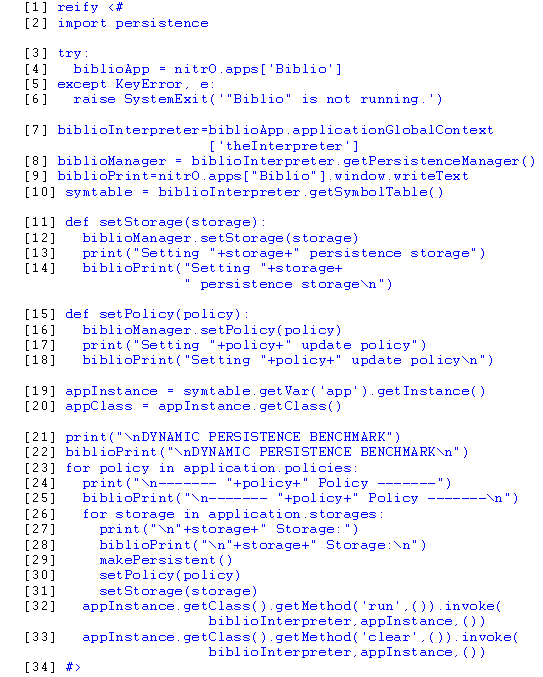

persistence settings. The following code is a fragment of thebenchmark application:
The previous code is a sole reify statement. Thus, it is executed
at the interpreter level to directly access to the Biblio application.
This is performed using
nitrO facade object (line 4), trying to get
the object that represents the bibliography application. If the application
is running, its interpreter
(line 7), persistence manager (line 8), console (line 9) and symbol table
(line 10) are also obtained.
To dynamically change persistence storages and update policies, the
setStorage (line 11) and
setPolicy (line 15) functions
are defined. They tell the persistence manager which storage and policy must be set, showing a message in both
the bibliography (
biblioPrint function) and benchmark (
app reference of the Biblio main method and its class:
From line 23 to 33, we can see the
nested loops previously mentioned. During each loop, one storage
and policy are selected and the two
clear methods of the
app instance are called (lines 32 and 33). We have employed
dictionary, DBM, hashing and B+Tree storages. The update policies used were each object’s
state modification, at 10 object modifications, each second and every 30 seconds.

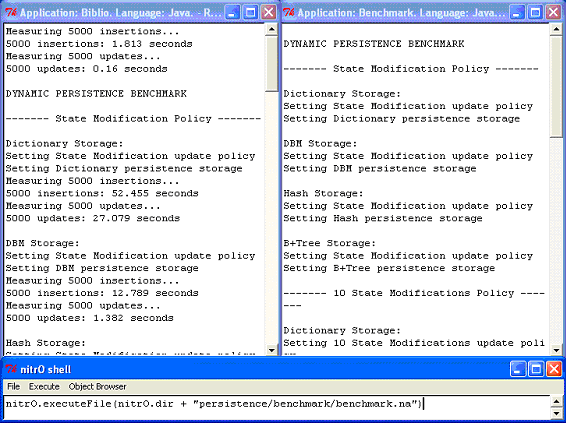

Windows of each running application are shown in Figure 9. We can see the nitrO shell at the bottom of the picture: the main window where we can tell nitrO which applications must be executed. The application on the left is the bibliography program showing insertion and modification times measured. Finally, the window on the right is the benchmark program that modifies the bibliography persistence settings.
Note that the first information shown by the bibliography application is insertion and modification in memory. The reason is that the benchmark had not been launched and Biblio was not persistent in the beginning. The following measurements are all persistent, caused by running the benchmark.

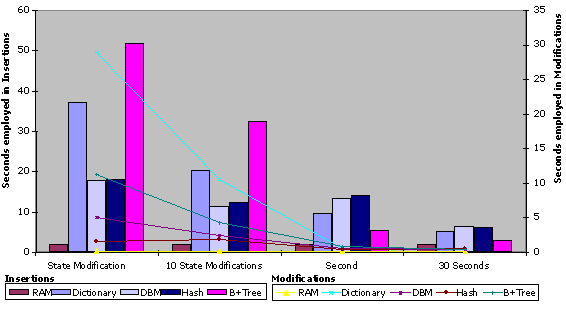

We have measured five different storages (including memory) with four policies. The number of insertions and modifications on each configuration was 5,000. All tests were carried out on a lightly loaded 1.0 GHz iPIII system with 256 Mbytes of RAM running WindowsXP. The metric employed was execution time. Figure 10 shows different measurements graphically.
As an example of how the persistence system can be used to obtain persistence parameter tuning, a first analysis of the results obtained executing the previous benchmark shows that:
Depending on variables such as system load, persistence level, number of connected users, or even application’s structure, any (part of an) application could dynamically select the most suitable persistence configuration, in a programmatic way. Therefore, our persistence system is capable of adapting to contexts only known at runtime, offering the optimum parameter tuning.
The most important feature of the persistence system is the higher degree of flexibility provided by reflection. Some advantages derived from this property are mentioned below.
The main disadvantage of dynamic application adaptation is runtime performance. The process of adapting an application at runtime, as well as the use of reflection, induces a certain overhead at the execution of an application. Adaptability and performance are usually two opposite concepts in computer science. In our first implementation we have tried to obtain maximum adaptability at runtime, following a complete SoC point of view.
The basic performance limitation of our reflective platform is caused by the interpretation of every programming language. Nowadays, many interpreted languages are commercially employed –e.g. Java, Python or C# – due to optimization techniques such as just-in-time (JIT) compilation or adaptable native-code generation. In the following versions of the nitrO platform, these code generation techniques will be used to optimize the generic-interpreter implementation. As we always translate any language into Python code, a way of speeding up application execution is using the interface of a Python JIT-compiler implementation –such as the exploratory implementation of Python for .NET that uses the .NET common-language-runtime (CLR) JIT compiler.
